When conventional cutting methods fall short due to restricted access, confined spaces, or demanding precision requirements, our Robotic Diamond Floor Saw steps in as the smarter, safer solution. This remote-controlled machine is engineered to cut reinforced concrete slabs with unmatched accuracy, capable of reaching depths of up to 500mm.

Traditional floor saw requires an operator to conduct the machine according to the marking which would have risk of uneven or irregular cuts. The Robotic Diamond Floor Saw allows full control from a safe distance while significantly reducing risk of crooked lines and operator’s exposure to vibration, noise, dust, and potential hazards.

Why Choose Sonicon’s Robotic Diamond Floor Saw?

1. Remote-Controlled Safety: The robotic operation allows operators to work at a safe distance from the cutting zone, minimising exposure to vibration, dust, and debris. This is a critical advantage in hazardous or confined environments.
2. Exceptional Cutting Depth: With a maximum cutting depth of 500mm and support for blades up to 1,200mm in diameter, this machine handles the most demanding reinforced concrete slabs with ease.
3. Precision and Consistency: The machine delivers consistent cutting performance across its full operating range (0–980 RPM), ensuring clean, straight cuts every time without deviation or surface damage.
4. Access to Difficult Areas: Its compact track-mounted design (1,850mm × 900mm × 1,100mm) frame allow it to navigate tight spaces, low-headroom environments, and areas inaccessible to larger conventional machines.

Applications of the Robotic Diamond Floor Saw

The robotic floor saw is ideal for a wide range of construction and demolition applications, particularly where conventional saws cannot operate effectively:

• Deep slab cutting in industrial and infrastructure projects requiring cuts beyond the capacity of standard floor saws
• Cutting in confined or hazardous environments, such as basements, tunnels, underground facilities, or areas with low headroom
• Trench cutting for utility installation, including drainage, electrical conduits, and mechanical services
• Slab removal for foundation enhancement, piling works, or pit construction
• Selective demolition and floor joint creation in renovation or refurbishment projects
• Projects where operator safety is a priority and minimising human exposure to vibration and dust is essential

How the Robotic Diamond Floor Saw Works

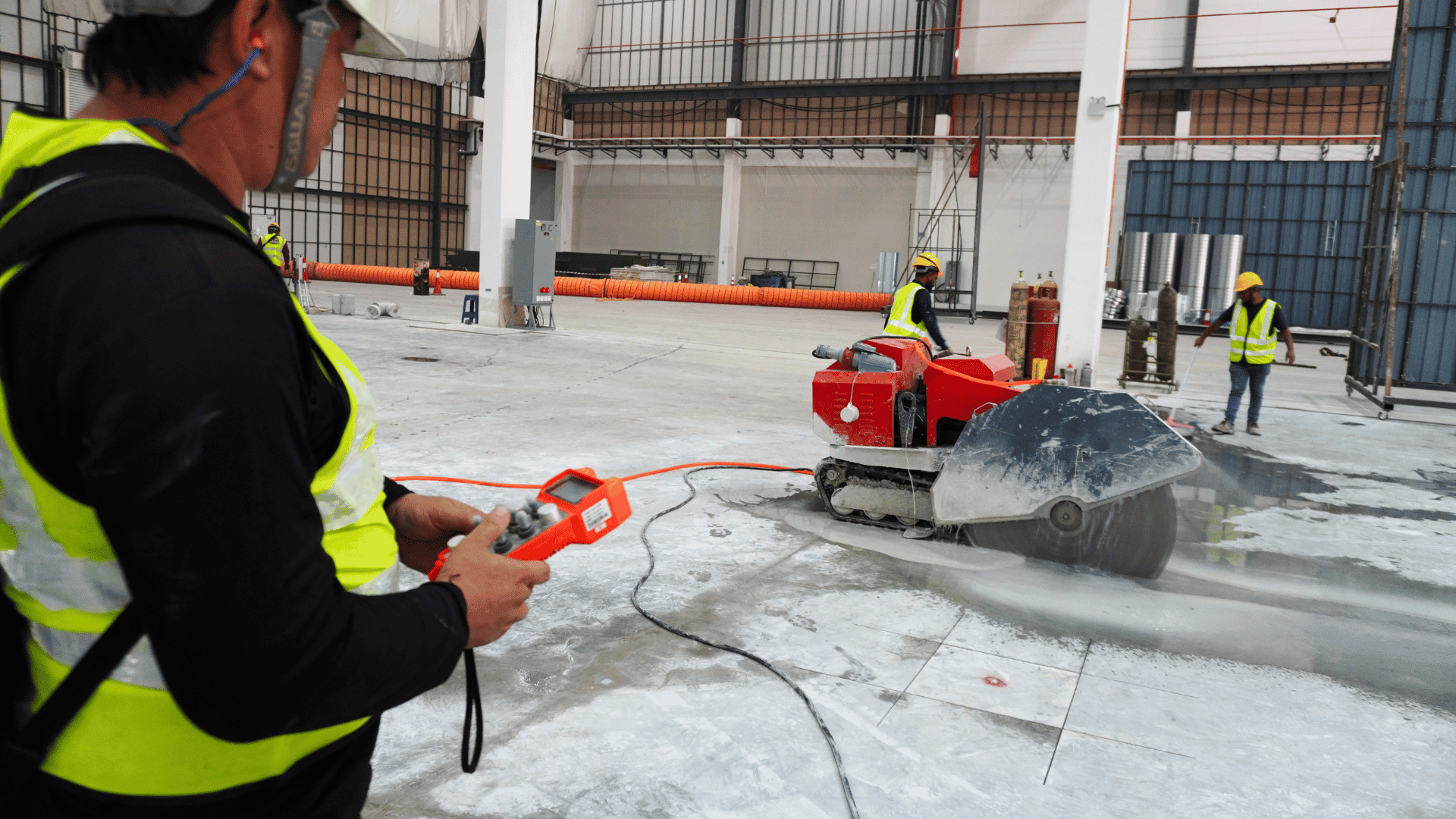

The Robotic Floor Saw gives the operator full command over movement, blade speed, and cutting depth just through the remote-control. The machine’s tracked undercarriage provides stable, controlled movement across the concrete surface, while the diamond-tipped blade rotates at speeds of up to 980 RPM to grind through even the toughest reinforced concrete.

Wet cutting is employed during operation, where water cools the diamond blade and suppresses dust, protecting both the operator and the working environment. With a 1:50 gear reduction, the electric feed motor ensures smooth, steady feed control, allowing precise depth management throughout the cut. With a maximum line speed of 25 M/S and a main driving wheel capacity of 500mm, the machine is built for sustained, high-performance operations.

We continuously invest in advanced equipment to deliver cutting solutions that are not only highly effective but also safer for our team and your site. The Robotic Diamond Floor Saw represents the next step in precision concrete cutting for deeper cuts, greater access, and complete operator safety, all in one powerful machine. Whether your project demands cutting in a tight space or deep into heavily reinforced slabs, our Robotic Floor Saw is built for the challenge.
